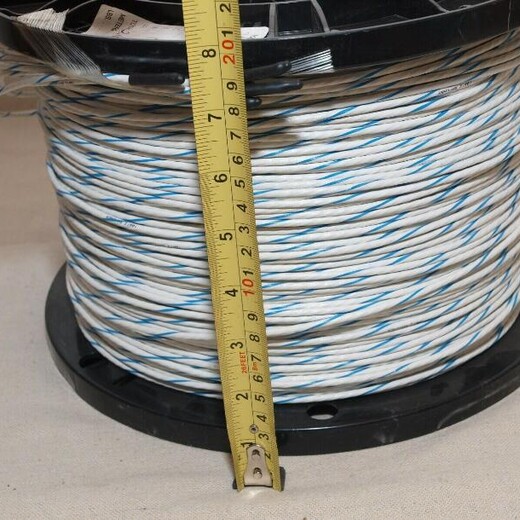

航空數據總線，航空線纜S280W502-3

部分航空線纜型號：

Cable Type

Nominal

Impedance

(ohms)

Draka Fileca

F-4703-3

100

F-4703-4

F-4704-5

F-47-4-6

Filotex ET2PC236

ET2PF870

PIC Wire

E50424

E50426

E51424

Tensolite

NF22Q100

NF24Q100

NF24Q100-1

NF24Q100-01-200C

NF26Q100

NF26Q100-1

NF26-2Q100

24443/03130X-4(LD)

24443/03166X-4(LD)

24443/9P025X-4(LD)

23450/04090X-4 (LD)

24443/C20714X-4(LD)

Gore

RCN7688

RCN8513

RCN8672

S280W502-4

JSF-18-3

Themax

956-4TN

956-5

T956-4T200

MX100Q-24

Tensolite 24450/03089X-4(LD)

110

Gore RCN8487

JSFY02-1

JSF18

Tensolite 26473/02006X-4(LD) 150

Gore RCN8328

Quadrax Contacts

CABLE USAGE GUIDE

D38999 Series III* Connectors

Quadrax Transition Adapters

CABLE USAGE GUIDE

D38999 Series III* Connectors

or ARINC 600 Connectors

Differential Twinax Contacts

CABLE USAGE GUIDE

D38999 Series III* Connectors

Differential Twinax Transition Adapters

CABLE USAGE GUIDE

D38999 Series III* Connectors

or ARINC 600 Connectors

* Requires modified connector to accommodate keyed contacts.

Cable Type

Nominal

Impedance

(ohms)

Tensolite 26463/70460X-2 98 ST5M1284-003

Draka Fileca 2709-3

100

PIC Wire E10224

Tensolite

NF24T100-200C Space

23460/05114X-2(LD)

24463/03220T-2(LD)

24463/05099X-8(LD)

26453/03184X-2(LD)

24463/9P025X-2(LD)

Raychem 0026A0024, 0024G0024

S280W502-6

JSFY11-24

Gore GSC-05-827300-00

Thermax

956-6262, 956-1T200

12814

MX 100-24

Tensolite 26483/03071X-2(LD) 150

Cable Type

Nominal

Impedance

(ohms)

Draka Fileca F-4703-3

100

F-4704-4

Tensolite

NF22Q100

NF22Q100-01

NF24Q100

NF26Q100

S280W502-1

Thermax 956-5

Gore GSC-10-8273900

Tensolite 26473/02006X-4(LD) 150

Cable Type

Nominal

Impedance

(ohms)

M17/176-00002 78

Tensolite 224463/9P025X-2 100 24463/9P025X-2(LD)

Tensolite 26483/03071X-2 150

Cable Usage Guide

220 Contact Amphenol Aerospace for more information at 800-678-0141 ?

Amphenol Aerospace

Dualok

III

SJT

38999

PCB

HD

I

II

Accessories

Herm/Seal

Aquacon

Fiber

Optics

Contacts

Connectors

Cables

High

Speed

26482

Matrix 2

83723 III 5015 26500

Pyle

22992

Class L

BackShells

Options Others

EMI Filter

Transient Crimp Rear

Release

Matrix

Matrix|Pyle

Quadrax Contacts

CABLE USAGE GUIDE

ARINC 600 Rack & Panel Connectors

Cable Usage Guide, cont.

Differential Twinax Contacts

CABLE USAGE GUIDE

ARINC 600 Rack & Panel Connectors

Cable Type

Nominal

Impedance

(ohms)

ABS0386WF24 100

ASNE0272TK22 100

ASNE0272TK24 100

Tensolite 24463/9P025X-2(LD) 100

Concentric Twinax Contacts

CABLE USAGE GUIDE

D38999 Series I, II, III & SJT Connectors

Cable Type

Nominal

Impedance

(ohms)

EPD32263A 77

EPD22189B 77

M17/176-00002 77

GSC-12-2548-00 77

GC875TM24H 77

GSC-12-81095-00 77

Raychem

10602 77

10606 77

10612 77

10613 77

10614 77

23089/RC 77

05A0771 77

T10971 77

7724C8664 77

7726D0664 77

782OD0111 (20 AWG) 78

0024G0024 100

5M2022-003 100

HS5930 100

S280W502-1 100

CXN2268 100

Triax Contacts

CABLE USAGE GUIDE

D38999 Series I, II, III & SJT Connectors

Cable Type

Nominal

Impedance

(ohms)

JN1088WT 50

5M2397-002 75

81264-02 75

JN1088WU 75

Gore GSC-03-81497-00 75

RG179 (Coax Cable) 75

Tensolite 28988/50823LXX-1 75

Tensolite 28988/50823LXX-1 75

Thermatics 12447 75

10602 (Twinax Cable) 77

5M2559-001 95

81264-01 95

ST5M1323-001 95

Champlain 81-00700 95

Tensolite 28598/9C026LT-1 95

26895/90334X-1 95

Teledyne 13809 95

11914/1 95

Times AA6603 95

RGX179 75

Concentric Twinax Contacts

CABLE USAGE GUIDE

ARINC 600 Rack & Panel Connectors

Cable Type

Nominal

Impedance

(ohms)

S280W502-1 100

Cable Type

Nominal

Impedance

(ohms)

Draka Fileca F-4703-3

100

F-4704-5, F4704-4

Tensolite

NF22Q100

NF24Q100

24443/03130X-4(LD)

24443/9P025X-4(LD)

S280W502-4

JSFY02-1 110

Gore RCN8328

150 Tensolite 26473/02006X-4(LD)

Contact Amphenol Aerospace for more information at 800-678-0141 ? 221

Amphenol Aerospace

II

Dualok

III

SJT

38999

I

PCB

Accessories

Aquacon

HD

Herm/Seal

Fiber

Optics

Contacts

Connectors

Cables

High

SpeedMatrix 2 26482 83723 III Matrix|Pyle 5015 Crimp Rear Matrix Release 26500

Pyle Class L

22992

Shells

BackOthers

Options EMI Filter Transient

Cable Usage Guide, cont.

Impedance

(ohms)

For Circular

(MIL-DTL-38999 type)

For Standard & Heavy

Duty Circular

(MIL-DTL-5015 type)

(MIL-DTL-22992 type)

For Rectangular

Connectors

Additional

Contacts

(Consult

Amphenol)

RG-5B/U (M17/073-RG212) 50 ?

RG-6A/U (M17/2-RG6) 75 ?

RG-7/U 97 ?

RG-9B/U (M17/075-RG214) 50 ?

RG-11A/U (M17/6-RG11) 75 ?

RG-12A/U (M17/6-RG12) 75 ?

RG-13A/U 74 ?

RG-21A/U 53 ?

RG-55B/U (M17/084-RG223) 53 ? ?

RG-58C/U (M17/028-RG058) 50 ? ?

RG-58 (M17/155-00001) 50 ?

RG-59B/U (M17/29-RG59) 75 ?

RG-62A/U (M17/030-RG062) 93 ?

RG-62B/U 93 ?

RG-63B/U (M17/31-RG63) 125 ?

RG-71B/U (M17/90-RG71) 93 ?

RG-87A/U 50 ?

RG-115/U 50 ?

RG-115A/U 50 ?

RG-116/U 50 ?

RG-122/U (M17/054-RG122) 50 ? ?

RG-133A/U (M17/100-RG133) 95 ?

RG-140/U (M17/110-RG302) 75 ?

RG-141A/U 50 ? ?

RG-142A/U 50 ? ? ?

RG-142B/U (M17/060-RG142) 50 ? ? ? ?

RG-143A/U 50 ?

RG-161/U 70 ? ?

RG-174A/U (M17/119-RG174) 50 ? ?

RG-178B/U (M17/093-RG178) 50 ? ?

RG-179B/U (M17/094-RG179) 75 ? ?

RG-180B/U (M17/095-RG180) 95 ? ? ?

RG-187A/U (M17/094-RG179) 75 ? ?

RG-188A/U (M17/113-RG316) 50 ? ?

RG-188 Double Braid 50

RG-195A/U (M17/095-RG180) 95 ? ? ?

RG-195 Double Braid 95

RG-196A/U (M17/169-00001) 50 ? ?

RG-210/U 93 ?

RG-212/U (M17/073-RG212) 50 ? ?

RG-214/U (M17/075-RG214) 50 ?

RG-216/U (M17/77-RG216) 75 ?

RG-222/U 50 ?

RG-223/U (M17/084-RG223) 50 ? ? ?

RG-225/U (M17/86-RG225) 50 ?

RG-227/U 50 ?

RG-302/U (M17/110-RG302) 75 ?

CHART CONTINUES ON NEXT PAGE

NOTE: For information on coax contacts for Miniature circular connectors,

MIL-DTL-26482 Series 1, see catalog 12-070 and consult

Amphenol Industrial Operations.

NOTE: MIL-DTL-38999 supersedes MIL-C-38999.

MIL-DTL-5015 supersedes MIL-C-38999.

MIL-DTL-22992 supersedes MIL-C-22992
